Terrabase Rustic

Resin Bound Surfacing

Terrabase Rustic is an innovative patented ‘no-dig’ paving system that provides a decorative and natural rustic looking permeable surface, suitable for pedestrian footpaths and areas subject to occasional trafficking by light vehicles.

Depending on your requirements, Terrabase ...

Terrabase Rustic is an innovative patented ‘no-dig’ paving system that provides a decorative and natural rustic looking permeable surface, suitable for pedestrian footpaths and areas subject to occasional trafficking by light vehicles.

Depending on your requirements, Terrabase Rustic can be applied directly onto most suitable surfaces and gradients. Potentially it can even be installed directly onto the ground as a no-dig resin bound solution for sensitive sites. An ideal replacement or overlay system for self-binding surfaces such as ‘Hoggin’ as it is fully bound and will not be washed away.

Terrabase Rustic is porous, allowing water to permeate/percolate through the surface and beyond when a suitable base build-up configured for SuDS (Sustainable Urban Drainage Systems) has been installed.

Terrabase Rustic is available in a range of finishes, each an exact formulation of aggregates bound with specific quantities of resin. We have blends suitable for pedestrian and vehicle use – driveways, paths, patios, pool surrounds.

We offer a 10 Year Product Guarantee on Terrabase Rustic and the system has an Environmental Product Declaration (EPD).

Looking for a less rustic finish?

If you require a more contemporary looking finish using a smaller stone size, take a look at our Terrabase Classic Resin Bound porous surfacing system using a 6mm Addaset, Addabound or Terrabound aggregate blend.



+ Read More
Tech Documents 10 Year Product Guarantee

Exclusive range of 8 rustic resin bound porous surfacing blends

Swatch of Terrabase Rustic in Anthracite colour.
Terrabase Rustic Anthracite Resin Bound 6-10mm UV
Terrabase Rustic Beach Resin Bound
Terrabase Rustic Beach Resin Bound 6-10mm UV/Non UV
Swatch of Terrabase Rustic in Cove style.
Terrabase Rustic Cove Resin Bound 6-10mm UV/Non UV
Terrabase Rustic Harvest Resin Bound
Terrabase Rustic Harvest Resin Bound 6-10mm UV
Terrabase Rustic Iceberg Resin Bound
Terrabase Rustic Iceberg Resin Bound 6-10mm UV
Terrabase Rustic Oak Resin Bound
Terrabase Rustic Oak Resin Bound 6-10mm UV/Non UV
Terrabase Rustic Silver Resin Bound
Terrabase Rustic Silver Resin Bound 6-10mm UV
Terrabase Rustic Tweed Resin Bound
Terrabase Rustic Tweed Resin Bound 6-10mm UV/Non UV

System features & benefits

Minimum/No-dig

No invasive groundworks - minimum disruption. Suitable for sensitive sites or minimum depth requirements

Requires No Large Machinery To Install

Suitable for sites with access issues.

No Asphalt or concrete base requirement

MOT Type 3 base or can be installed onto existing base for light pedestrian use. Suitable for sensitive sites or minimum depth requirements

SuDs Compliant Porous Surface

10mm stone size provides excellent porosity. Great for driveways and areas requiring fast and effective drainage.

Low Maintenance

Sweep and power wash to keep clean.

Alternative To Self Binding Gravel

Natural looking surface without the maintenance issues.

Up to 10 Year Product Guarantee

Depending on surface use.

This system is best for:

Footpaths

Rustic natural looking paths for woodland walkways and parks. Perfect for areas where tree roots are near to the surface.

Canal Towpaths

Natural looking, low maintenance, porous footpath surface with excellent drainage.

Golf Courses

Non invasive base for rustic looking paths.

Cycle Paths

Low maintenance paving suitable for cyclists. No loose chippings.

Domestic Driveways

Perfect for creating new drives or extending existing parking spaces without the need for an asphalt or concrete base.

Patios

Creating seamless, decorative surfacing for outdoor seating areas.

Courtyards

Creating decorative, porous, low maintenance surfacing for courtyards.

You might also want to consider

Resin bound porous paths for physic Garden in Wales

Terrabase Classic

More Info
Addaflex-R recycled rubber and aggregate porous surfacing

Addaflex-R

More Info

MAKE SURE YOU GET THE RIGHT RESIN SOLUTION FOR THE JOB

Get in touch to discuss your project

Contact

System build-up and technical documents

Download datasheet

View NBS Clause

Download Maintenance Guide

Download Product Brochure

View BIM Model

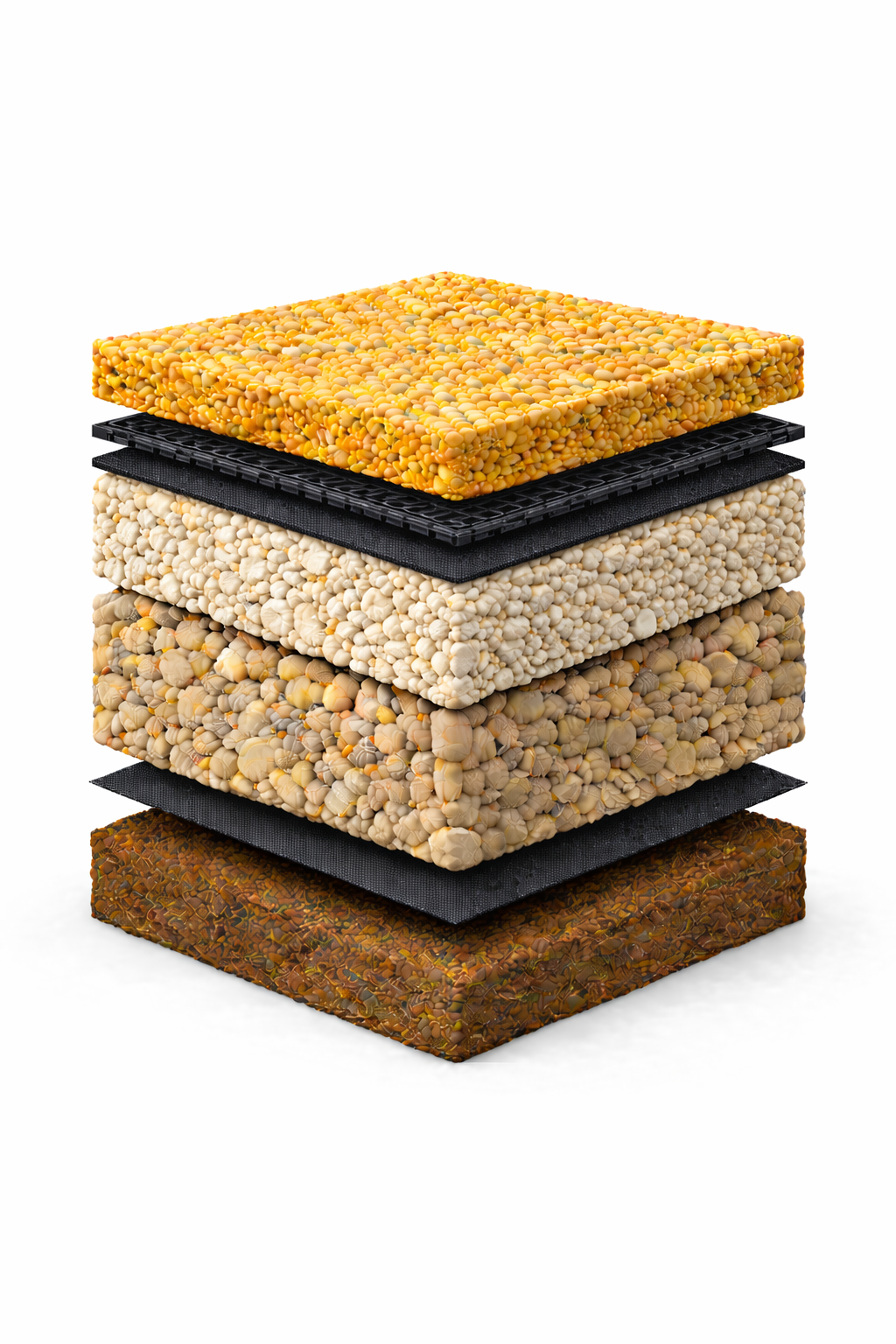

Base Build Up Terrabase Rustic Driveway
Base Build Up Terrabase Rustic Pathway
Base Build Up Terrabase Rustic Pathway No Dig

Surface Course

30mm layer of 6-10mm resin bound Terrabase Rustic aggregate (Approx 5mm is incorporated into the Addagrid). Hand applied and trowelled to a rustic finish by Addagrip approved installers.
Terrabase Addagrid (Depth of Terrabase Addagrid 7.1mm) by Addagrip approved installers.
Terrabase Geofabric (Depth of Terrabase Geofabric 2.4mm) by Addagrip approved installers.

Binder Course

Not applicable

Sub Base

A 30mm Limestone layer of 6-10mm aggregate laid by others in a well compacted layer

Plus

A 150mm-225mm layer of Type 3 granular sub-base

Membrane

Not applicable

Sub Grade

Regulated as required

Download System

Surface Course

30mm layer of 6-10mm resin bound Terrabase Rustic aggregate (Approx 5mm is incorporated into the Addagrid). Hand applied and trowelled to a rustic finish by Addagrip approved installers.
Terrabase Addagrid (Depth of Terrabase Addagrid 7.1mm) by Addagrip approved installers.
Terrabase Geofabric (Depth of Terrabase Geofabric 2.4mm) by Addagrip approved installers.

Binder Course

Not applicable.

Sub Base

A 30mm Limestone layer of 6-10mm aggregate laid by others in a well compacted layer

Plus

A 100mm layer of Type 3 granular sub-base

Membrane

Not applicable.

Sub Grade

Regulated as required.

Download System

Surface Course

30mm layer of 6-10mm resin bound Terrabase Rustic aggregate (Approx 5mm is incorporated into the Addagrid). Hand applied and trowelled to a rustic finish by Addagrip approved installers.
Terrabase Addagrid (Depth of Terrabase Addagrid 7.1mm) by Addagrip approved installers.
Terrabase Geofabric (Depth of Terrabase Geofabric 2.4mm) by Addagrip approved installers.

Binder Course

Not applicable

Sub Base

Not applicable

Membrane

Not applicable

Sub Grade

Sub-grade regulated as required

Download System

Take a look at the projects Terrabase Rustic works best in

Terrabase Rustic no dig path for Highgate Cemetery

Highgate Cemetery

Read Case Study
Terrabase Rustic resin bound Broad Walk at Kew Gardens

Kew Gardens Broad Walk

Read Case Study
Resin bound paths at Leaders Gardens Putney

Leader’s Gardens Putney

Read Case Study
Resin bound porous paths for physic Garden in Wales

Cowbridge Physic Garden

Read Case Study
Resin bound surfacing for flood defence scheme

Exeter Flood Defence Scheme

Read Case Study
Resin bound no-dig paving for London driveway

London Driveway

Read Case Study
Resin Bound pathways for Christchurch Gardens London

Christchurch Gardens, London

Read Case Study
Resin bound paths at Mortlake Crematorium

Mortlake Crematorium

Read Case Study

Frequently Asked Questions

What’s The Difference Between Resin Bound And Resin Bonded?

There are two different systems that use resin to fix gravel aggregates to create decorative surfacing. These are Resin Bound porous paving and Resin Bonded paving and whilst similar in name they have different properties, application methods and aesthetics. Resin bound surfacing consists of aggregate mixed with resin in specific blends using specific aggregate to resin ratios. The material is trowelled down to a smooth finish similar to a screed (with no loose stones). Depths are specified depending on aggregate size, normally 12mm, 16mm, 18mm or 24mm. Resin bonded surfacing is a scatter system which provides texture and the appearance of loose gravel. A layer of resin is applied to a suitable surface laid to falls and covered with loose aggregate. Once cured the remaining loose stones are removed. Thickness is governed by aggregate size. i.e. 1-3mm aggregate will have a nominal depth of 4mm.

Does Terrabase come with a product guarantee?

Our patented Terrabase Rustic and Terrabase Classic systems come with a Product Guarantee of up to 10 Years depending on project type and surface use.

How do I clean my Terrabase Rustic Driveway

General cleaning of the TERRABASE surface can be carried out by cold pressure washing up to a maximum 150 bar rating to remove dirt and grime. The water should be applied using a fan type lance which should be kept 200mm above the installed TERRABASE. Care should be taken however to prevent damage to the surface with excessive water pressure. Our full Terrabase O & M Manual is available to download as a pdf

Is Resin Bound Surfacing SuDS Compliant?

The Addagrip range of Resin Bound surfacing systems are porous and SuDS compliant when installed onto one of our recommended porous base build ups.

Is Resin Bound Surfacing Suitable For Driveways

The Addagrip range of BBA approved Addaset, Addabound Terrabound Resin Bound surfacing, Stonebound and Terrabase systems are suitable for driveways when installed onto one of our recommended base build ups.

What’s The Lifespan Of Resin Bound Surfacing?

Our range of Resin Bound systems have an anticipated lifespan of up to 25 years depending on product and usage. We have a selection of Product Guarantees ranging from 5 years for Stonebound, 10 years for Terrabase Rustic and Terrabase Classic, 25 years for our BBA range.
