Exclusive range of aggregate finishes
System features & benefits
Aesthetically Pleasing
Durable
Low Maintenance
Slip Resisitant
Fast Application
Fixed stone
This system is best for:
Car parks and Access Roads
Pathways
Driveways
Balconies
Podium decks and Roof Terraces
Bridges and Ramps
System build-up and technical documents
Resources to help you with your choice of surfacing product
Surface Course
Addastone PLUS Resin Bonded - Typical depth 5-7mm depending on aggregate size
Binder Course
Base Course of 50-60mm AC20 Dense Bin 100/150
Plus
A 25-30mm AC6 Dense Surf 100/150 (+/- 6mm). Laid by others in well compacted layers to minimum fall of 1:40 to 1:60.
Vacuum Assisted Captive Shot Blasting to remove dirt and residue from the surface to ensure a good key.
Sub Base
Sub-base: Should be 100-150mm
(minimum 100mm) or as specified for the
site conditions by a qualified engineer
Membrane
If required
Sub Grade
Existing
Surface Course
Addastone PLUS Resin Bonded - Typical depth 5-7mm depending on aggregate size
Binder Course
60-70mm AC20 Dense Bin 100/150
Plus
A 30mm AC6 Dense Surf 100/150 or AC10 Dense Surf 100/150 (+/- 6mm) Laid by others in well compacted layers to minimum fall of 1:40 to 1:60.
Vacuum Assisted Captive Shot Blasting to remove dirt and residue from the surface to ensure a good key
Sub Base
Sub-base: Should be 100-150mm (minimum 100mm) or as specified for the site conditions by a qualified engineer
Membrane
As required
Sub Grade
Existing
Surface Course
Addastone PLUS Resin Bonded - Typical depth 5-7mm depending on aggregate size
Binder Course
120mm AC20 Dense Bin 100/150
Plus
A 30-40mm AC6 Dense Surf 100/150 or AC10 Dense Surf 100/150 (+/- 6mm) Laid by others in well compacted layers to minimum fall of 1:40 to 1:60.
Vacuum Assisted Captive Shot Blasting to remove dirt and residue from the surface to ensure a good key.
Sub Base
Sub-base: Should be 100-150mm (minimum 100mm) or as specified for the site conditions by a qualified engineer
Membrane
As required
Sub Grade
Existing
Surface Course
Addastone PLUS Resin Bonded - Typical depth 5-7mm depending on aggregate size
Binder Course
100-200 mm AC32 Dense base/Bin 100/150
Plus
A 30-40mm AC6 Dense Surf 100/150 or AC10 Dense Surf 100/150 (+/- 6mm) Laid by others in well compacted layers to minimum fall of 1:40 to 1:60.
Vacuum Assisted Captive Shot Blasting to remove dirt and residue from the surface to ensure a good key.
Sub Base
Sub-base: Should be 100-150mm (minimum 100mm) or as specified for the site conditions by a qualified engineer
Membrane
As required
Sub Grade
Existing

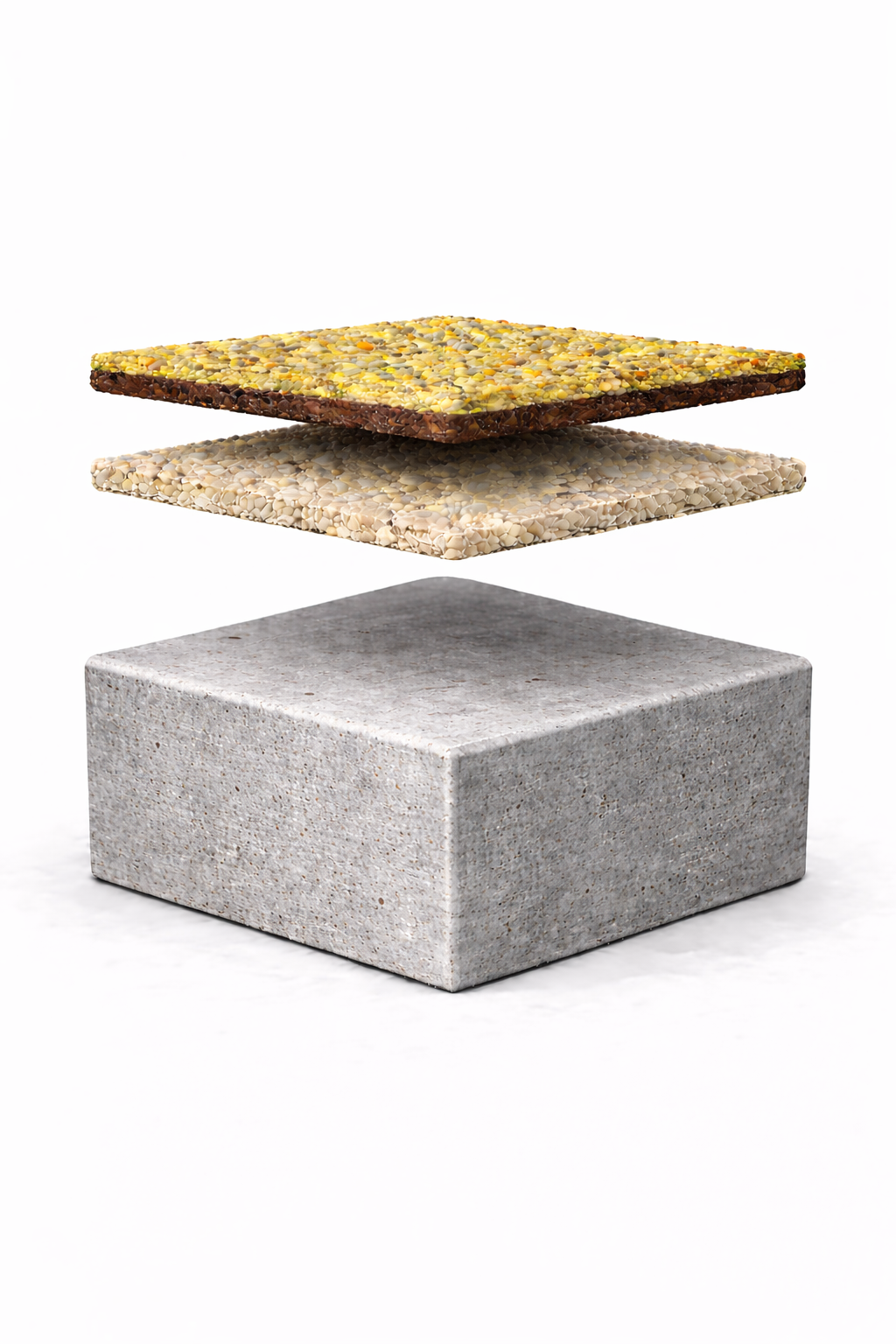

Surface Course
PU Addastone Plus Resin Bonded at typical depth 5mm using 1-3mm aggregate size
EP Addastone primer approx depth 0.3-0.5mm which has been scattered with quartz grit and left to cure to provide key.
(Coverage of quartz grit 50-70% of primer surface}
Binder Course
Concrete Course at a depth as required to take expected traffic loading.
Prepare concrete surface by Vacuum Assisted Diamond Grinding or Shot Blasting
Do not apply Addastone Plus system over movement joints. Ideally, joint material should be placed after application of the Addastone Plus system.
Sub Base
As required
Membrane
As required
Sub Grade
Existing
Take a look at the projects Addastone Plus works best in
Frequently Asked Questions
What’s The Difference Between Resin Bound And Resin Bonded?
Are our resin surfacing systems solvent free?
Is Resin Bonded Surfacing Suitable For Driveways
What Does Resin Bonded Surfacing Cost?
What’s The Lifespan Of Resin Bonded Surfacing?
- Footpaths using a 2-5mm Brittany Bronze: 8-15 Years
- Domestic Drive using a 1-3mm Chinese Bauxite: 8-15 Years
- Car Parks using a 1-3mm Guyanan Bauxite: 5-10 Years
- Roads using 1-3mm Chinese Bauxite 5- 8 Years
